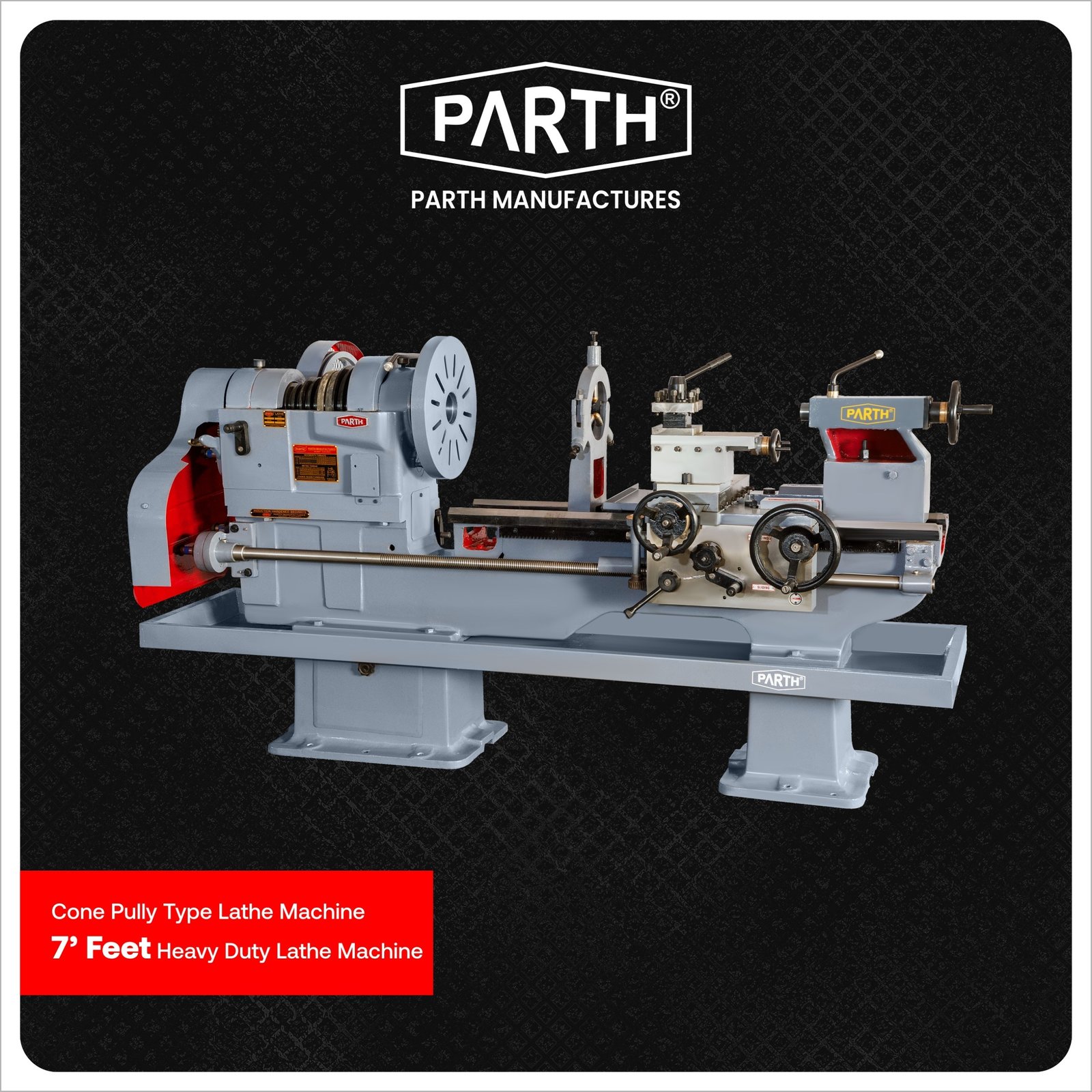

7 Feet Heavy Duty Lathe Machine

Specification	MODEL NO. – PHD-84
LENGTH OF BED	7′ (2135 MM)
WIDTH OF BED	324 MM
INDUCTION HARDEN BED WAYS	YES
HIGHT OF CENTER	12″ (304 MM)
SPINDLE BOR	52 MM
ADMIT BET. CENTER	965 MM
SWING OVER BED	555 MM
SWING OVER CROSS SLIDE	355 MM
SWING IN GAP	825 MM
LEADSCREW DIA / THREAD	32 MM / 4 TPI
TAILSTOCK RAM DIA/TAPPER	50 MM/MT-4
TAILSTOCK TRAVEL	175 MM
NO. OF SPINDLE SPEED	8/30 TO 495 RPM
APPROX WEIGHT	1325 KG.
POWER REQUIRED	3 HP

We are engaged in offering 7 Feet Heavy Duty Lathe Machine to our clients. All our products have been widely appreciated by our customers.
